Figure | Configuration and working principle of the FP-CSI system. (IMAGE)
Caption

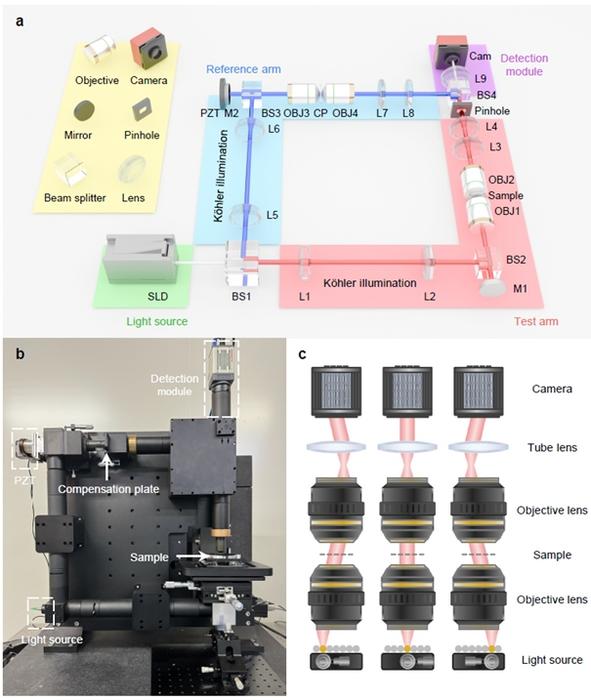

Figure | Configuration and working principle of the FP-CSI system. a Optical schematic of the FP-CSI framework based on a transmissive Linnik interferometer. A near-infrared superluminescent diode (SLD) provides quasi-point illumination at various positions to generate angularly diverse illumination. The reference and test arms are symmetrically configured in a Linnik arrangement with Köhler illumination (L1, L2, L5, L6), near-infrared objectives (OBJ1–4), and relay lenses (L3, L4, L7, L8). In the test arm, a pinhole is conjugated with the objective pupil. In the reference arm, a piezoelectric transducer (PZT) modulates the optical path during axial scanning. Additionally, a compensating plate (CP) with the same thickness and material as the sample is positioned in the parfocal plane of OBJ3 and OBJ4. Interferograms are relayed by a tube lens (L9) and captured by a near-infrared InGaAs camera (Cam), which functions as the detection module. SLD, superluminescent diode; BS, beam splitter; L, lens; M, mirror; OBJ, objective lens; CP, compensation plate; Cam, near-infrared camera; PZT, piezoelectric transducer. b Setup of the experimental FP-CSI system corresponding to the schematic in a. c Conceptual illustration of angularly varying quasi-parallel illumination generated by translation of the fiber source. Larger source displacements correspond to increased incident angles and the sampling of higher spatial frequency components within the sample’s angular spectrum
