Figure 2 (IMAGE)

Advanced Institute for Materials Research (AIMR), Tohoku University

Figure 2

Caption

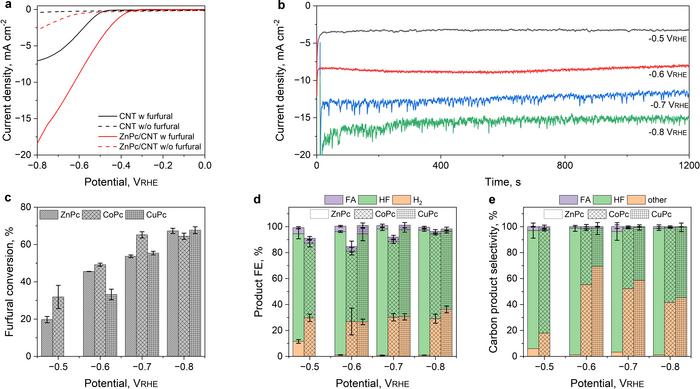

FRR performance in a three-electrode test. (a) LSV curves obtained in an electrolyte with (solid) and without (dashed) 5 mM furfural. (b) Representative discharging curves collected for 20 min. Calculated (c) furfural conversion, (d) faradaic efficiency (FE), and (e) carbon product selectivity at applied potentials from −0.5 to −0.8 VRHE over MPc/CNT (M = Co, Cu and Zn) catalysts.
