Figure 3 | Super-resolution imaging of biological tissues.

Caption

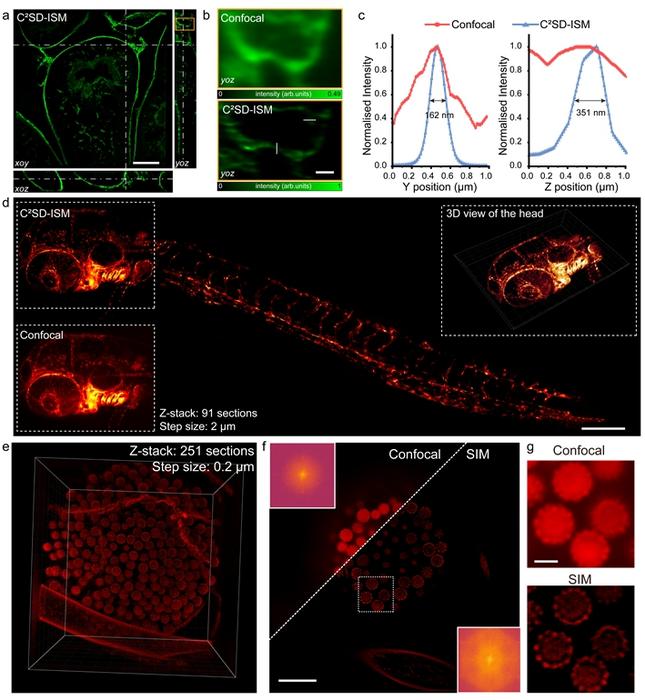

Figure 3 | Super-resolution imaging of biological tissues. a, Orthogonal view of 3D mouse kidney section. Scale bar: 10 μm. b, Confocal vs. C²SD-ISM images of boxed region in a. Scale bar: 1 μm. c, Intensity profiles along dashed line in b. d, 3D projection of zebrafish vasculature (depth: 180 μm), insets show the confocal and a 3D view. Scale bar: 200 μm. e, 3D SD-SIM image of mold sample over a 66.5 × 66.5 × 50 μm volum. f, Confocal and SIM imaging with frequency spectra in insets. Scale bar: 10 μm. g, Detailed view of boxed area in f. Scale bar: 2 μm.

Credit

Liang, Q., Ren, W., Jin, B. et al.

Usage Restrictions

Credit must be given to the creator.

License

CC BY
