Fig2. Overview of research findings (IMAGE)
Caption

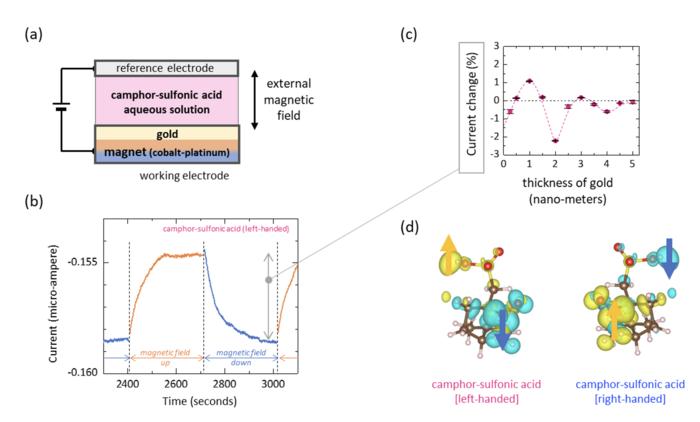

(a)A schematic illustration of the experimental setup. (b)Representative results of magnetoconductance measurements. The working electrode had a surface area of 0.5 mm2. The gray and green arrows in the figure represent the spin angular momentum (S) and its time derivative (dS/dt), respectively. (c)The MC ratio as a function of Au spacer thickness. (d)Schematic diagrams of the computational model for showing spin density. Yellow indicates upward and cyan indicates downward.
Credit
Image credit: Shinji Miwa / ISSP, The University of Tokyo
