Schematics showing how Yellowstone's underground magmatic system forms (IMAGE)

Chinese Academy of Sciences Headquarters

Schematics showing how Yellowstone's underground magmatic system forms

Caption

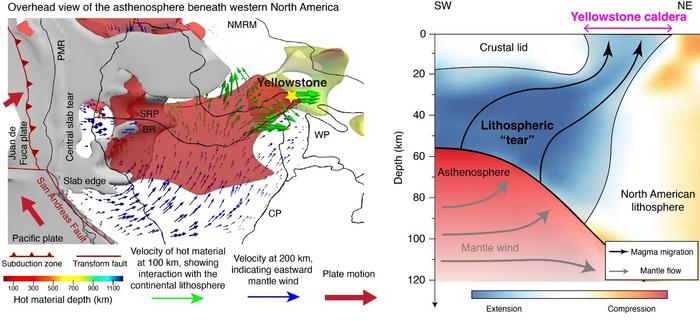

Schematics showing how Yellowstone's underground magmatic system forms. Left: the red iso-surface depicts the hot, shallow asthenospheric material transported eastward by the mantle wind. Right: schematics showing the lithospheric stress field and magmatic system beneath Yellowstone.

Credit

Image by LIU Lijun's Group

Usage Restrictions

Image usage restrictions: News organizations may use or redistribute this image, with proper attribution, as part of news coverage of this paper only.
