Band engineering and structural‑geometrical engineering in 2D/3D van der Waals heterostructures for advanced photodetection and intelligent sensing

Introduction: The New Frontier of Semiconductor Physics

The field of optoelectronics is currently undergoing a paradigm shift. For decades, the industry has relied on three-dimensional (3D) bulk semiconductors, such as Silicon (Si), Germanium (Ge), and III-V compounds, to drive everything from solar cells to high-speed fiber-optic receivers. However, as we move toward the era of the Internet of Everything (IoE) and edge artificial intelligence, these traditional materials are reaching their physical limits. The primary challenges include fixed spectral absorption bands, high power consumption in complex sensing arrays, and the difficulty of integrating different materials due to lattice mismatch.

Two-dimensional (2D) materials—atomic-layered crystals such as Graphene, Transition Metal Dichalcogenides (TMDCs), and Black Phosphorus (bP)—offer a revolutionary path forward. Unlike bulk crystals, 2D materials possess no dangling bonds on their surfaces, allowing them to be "stacked" onto 3D substrates via van der Waals (vdW) forces rather than rigid chemical bonds. This creates a 2D/3D vdW heterostructure, a hybrid system that combines the high absorption and mature processing of 3D semiconductors with the extreme tunability and novel physics of 2D layers.

Theoretical Foundations and Structural Advantages

The fundamental appeal of 2D/3D integration lies in the concept of "material synergy". In a standalone 2D photodetector, the light-matter interaction is often limited by the material's atomic thickness, leading to low photon absorption. Conversely, 3D materials are efficient absorbers but lack the gate-tunable surface states required for smart sensing.

When these two are integrated, the 3D semiconductor acts as a high-efficiency photon harvesting "tank," while the 2D material serves as a high-mobility, tunable extraction layer. This architecture provides several key benefits:

• Lattice Mismatch Liberation: Because the layers are held together by vdW forces, researchers can integrate materials with vastly different crystal structures (e.g., hexagonal MoS₂ on cubic Silicon) without creating the threading dislocations that typically ruin device performance.
• Interface Passivation: The 2D layer naturally passivates the 3D surface, reducing the density of interface states that trap charge carriers. This leads to a significant reduction in dark current—the "background noise" of a detector.
• Broadband Detection: By layering narrow-bandgap 2D materials on top of Si, the detection range can be extended from the visible into the mid-infrared (MIR) spectrum, enabling a single chip to "see" heat and chemical signatures.

Advanced Modulation Strategies for Enhanced Performance

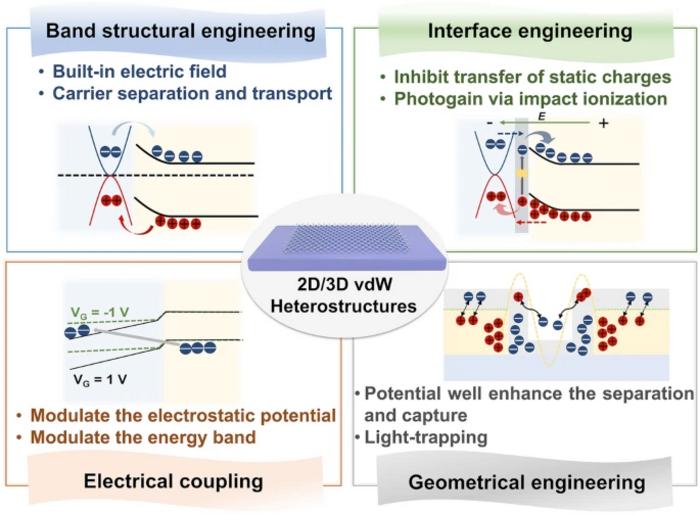

To push these devices toward commercial viability, four primary engineering strategies are employed to modulate their optoelectronic behavior.

1 Band Structure Engineering

The alignment of energy bands at the 2D/3D interface determines how effectively photo-excited electrons and holes are separated.

• Type-II Heterojunctions: This is the "staggered" alignment where the conduction band of the 2D layer is higher than the 3D layer, while the valence band is lower. This forces carriers to move in opposite directions, preventing them from recombining and thus maximizing the photocurrent.
• Broken-Gap (Type-III) Junctions: In some systems, such as bP/SnSe₂, the bands are so far apart that they don't overlap. This allows for ultra-fast carrier tunneling, which is essential for high-frequency telecommunication detectors.
• Schottky Junction Tuning: Using Graphene as a contact allows the Schottky barrier height to be adjusted via an external electric field. This means the detector can be "tuned" to be either extremely sensitive to low light or extremely fast for high-speed signals.

2 Interface and Tunneling Layer Engineering

The interface is the most critical part of the device. Researchers often insert an ultra-thin "tunneling layer"—usually a few nanometers of h-BN or an oxide like Al₂O₃—between the 2D and 3D materials. This layer acts as a filter: it blocks the low-energy electrons that contribute to dark current (noise) while allowing the high-energy, light-induced carriers to tunnel through. This significantly increases the specific detectivity (D*), allowing the sensor to detect photons in near-pitch-black conditions.

3 Electrical Coupling and Gate-Programmable Logic

The atomic thinness of 2D materials makes them uniquely susceptible to external electric fields. By placing a "gate" electrode near the 2D layer, the carrier concentration can be shifted from n-type to p-type in real-time. This leads to reconfigurable optoelectronics, where a single pixel can change its function—for example, switching from a simple light sensor to a logic gate that only triggers when a specific light intensity threshold is met.

4 Geometric and Optical Engineering

Recent work has moved away from flat, planar junctions. By using 3D substrates with nanostructures—such as Silicon nanowires, nanopores, or "moth-eye" nanocones—the light-matter interaction is enhanced. These structures trap light, forcing it to bounce back and forth until it is absorbed by the 2D/3D interface. Additionally, these geometric features can induce localized strain in the 2D layer, which modifies its bandgap and enables polarization-sensitive detection, allowing the sensor to distinguish the orientation of light waves.

Evaluation Metrics: Defining Success

To compare 2D/3D heterostructures with commercial standards, researchers use several rigorous metrics:

• Responsivity (R): This is the ratio of the generated photocurrent to the power of the incident light. While traditional Si detectors struggle to exceed 1 A/W, some 2D/3D hybrids with internal gain mechanisms have achieved values over 1000 A/W.
• Specific Detectivity (D*): This is the ultimate figure of merit for sensitivity. It accounts for the device's area and the noise it produces. Top-tier 2D/3D devices have reached D* levels of 10¹³ Jones, which is comparable to or better than expensive, cryogenically cooled infrared detectors.
• Response Speed: This measures how fast the detector turns on and off. Thanks to the high mobility of 2D materials like Graphene, many 2D/3D devices can operate at gigahertz frequencies, making them suitable for 6G wireless optical communications.

The Rise of In-Sensor Computing and Neuromorphic Vision

The most significant trend in 2D/3D research is the shift toward "intelligent" sensing. In traditional computers, the sensor captures an image, sends it to a memory unit, and then to a processor. This constant data movement consumes 80-90% of the total power in AI systems.

In-sensor computing integrates the sensing and processing steps into the 2D/3D heterostructure itself. By exploiting the "memory" effect of charge trapping at the vdW interface, these devices can act as artificial synapses. A 2D/3D sensor array can perform:

1. Image Preprocessing: Removing noise and enhancing edges before the data is even digitalized.
2. Pattern Recognition: Identifying shapes or motion directly at the hardware level.
3. Data Compression: Only sending "interesting" data (like a moving object) to the main processor, saving massive amounts of energy.

This neuromorphic approach mimics the human eye and brain, providing a low-latency, low-power solution for autonomous vehicles and facial recognition systems.

Challenges on the Path to Commercialization

Despite the laboratory success, the transition to mass production faces two major hurdles:

• Large-Area Growth: Producing 2D materials via Chemical Vapor Deposition (CVD) over 12-inch wafers while maintaining atomic perfection is still a challenge. Any wrinkle or grain boundary in the 2D film can become a source of noise.
• Environmental Stability: Some 2D materials, like Black Phosphorus, are sensitive to oxygen and moisture. Developing robust encapsulation techniques that protect the device without degrading its optical performance is an ongoing area of research.

Conclusion: Bridging the Gap

The integration of 2D materials with 3D semiconductors is no longer just a theoretical curiosity; it is a viable engineering path for the next generation of optoelectronics. By combining the structural reliability of 3D platforms with the functional diversity of 2D layers, we are entering an era of "smart pixels". These 2D/3D vdW heterostructures will be the backbone of future technologies, from hyperspectral cameras on smartphones to the ultra-fast, low-power vision systems required for the next generation of robotics and AI. As fabrication techniques mature and CMOS compatibility is perfected, these hybrid devices will redefine how we detect and process the world around us.
