Shape-shifting living devices rebuild broken joints from the inside out

Everyday joint motion relies on a razor-thin boundary where slippery cartilage transitions into rigid subchondral bone across sweeping, curved surfaces. Severe joint injuries fail to heal properly because embryonic ossification centers (the temporary spherical cell clusters that orchestrate bone mineralization from the inside out) vanish after infancy, leaving surgeons with flat, rigid implants that frequently slip and cause cartilage breakdown.

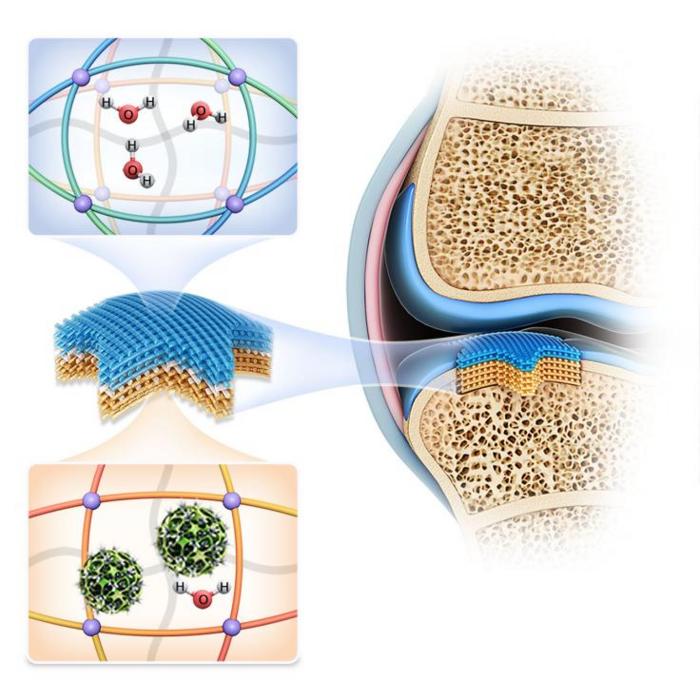

In the International Journal of Extreme Manufacturing, researchers at Shanghai Jiao Tong University and their co-workers used multi-material 4D bioprinting to assemble magnetically responsive, mineral-seeding "microrobots". Printed as flat constructs, these adaptive devices automatically curl upon contact with bodily fluids to fit complex joint contours, coaxing host cells to rebuild hard bone below and slick cartilage above.

The achievement surmounts a persistent bottleneck in orthopedic tissue engineering. Directing new bone growth normally demands charged nucleating proteins, such as bone sialoprotein, to capture calcium and phosphorus ions from surrounding fluids. These proteins, however, are costly, fragile, and easily deactivated during industrial processing.

While synthetic hydrogels offer structural alternatives, their dense molecular meshes act like tight microscopic sieves that choke off ion diffusion. Consequently, minerals accumulate only as a thin, brittle crust on the outer surface, leaving the core hollow and prone to mechanical collapse.

To bypass these transport and chemical barriers, the researchers fabricated porous microcapsules spanning roughly 150 μm using microfluidic-ice template technique made of gelatin methacryloyl (GelMA). Instead of unstable proteins, they infused the microcapsules with tannic acid, an abundant plant polyphenol. Tannic acid acts as a versatile molecular anchor: it secures iron oxide nanoparticles for magnetic navigation and uses its phenolic rings to bind calcium ions via cation-π interactions. Within 24 hours in mineral solution, needle-shaped hydroxyapatite crystals just 30 nm long sprout throughout the porous microcapsules.

To assemble these microrobots into larger devices without sealing off ion transport, the team blended them into a bioink containing unmodified gelatin as a sacrificial spacer. In standard physiological conditions at 37°C, this gelatin dissolves away, carving open microscopic irrigation canals that welcome mineral precursors deep into the implant. Meanwhile, slowly released tannic acid creates secondary nucleation sites in the surrounding hydrogel, fostering a uniform mineralized matrix rather than an isolated surface shell.

The device's self-shaping capability comes from pairing this bone-forming bioink with a cartilage-repair bioink formulated with chondroitin sulfate. Like a dry sponge plunged into water, the chondroitin sulfate layer swells aggressively, expanding far more than the stiffer microrobot layer.

By feeding each bioink's mechanical characteristics and swelling dynamics into finite element simulations, the team designed flat devices that folded into a 3.3 mm dome within 10 minutes of wetting. The folding process generated internal stresses of just 2 to 3 kPa, well below destructive thresholds. High water retention makes these devices visible under magnetic resonance imaging (MRI), while embedded magnetite allows external magnetic fields to adjust their position.

Biological assays showed that the two-sided device coordinates distinct cellular fates. Stem cells on the microrobot layer exhibited upregulation of focal adhesion signaling pathways and enhanced secretion of mineralized matrix. On the opposite face, the chondroitin sulfate layer nurtured cartilage matrix rich in type II collagen. In rat skull defect models, the functionalized devices produced an in vivo mineralized area coverage of over 28% after 3 weeks, nearly tripling the repair of untreated injuries.

This modular approach replaces manual sculpting with standardized, automated fabrication. The microfluidic technique ensures reproducible, batch-scale microrobot production, while computational models allow factories to print flat, cell-friendly geometries that curl into bespoke patient-matched shapes upon implantation.

But clinical translation will require testing these self-curling devices in large-animal knee models to evaluate how they endure heavy cyclic shearing. Further research will track the multi-month metabolic clearance of the magnetic nanoparticles and refine automated software that translates clinical scans into patient-specific printing toolpaths.
