Aneuploidy of the MHC region revealed through assembled haplotypes of cell lines. (IMAGE)
Caption

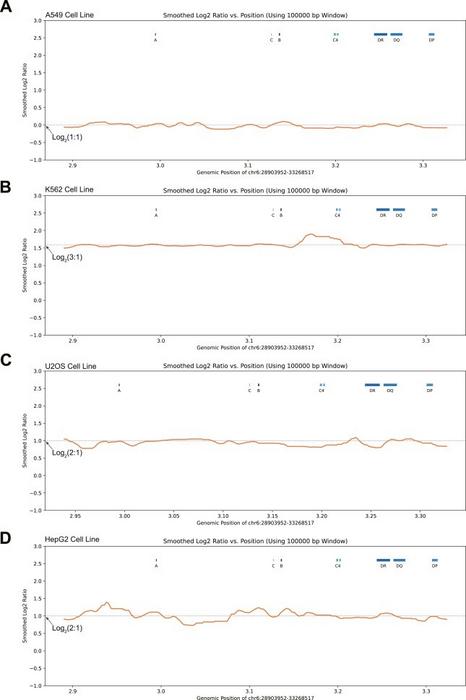

(A–D) Aneuploidy in the A549 (A), K562 (B), U2OS (C), and HepG2 (D) cell lines were visualized using the log2 transformed sequencing depth ratio between the two assembled MHC haplotypes. Orange lines represent the results smoothed over a 10 kb window. Dotted lines indicate the overall ratios between two haplotypes, with the values shown on the left. Blue boxes represent regions corresponding to three HLA class I genes (HLA-A, HLA-B, and HLA-C), C4 genes, and three HLA class II genes (HLA-DR, HLA-DQ, and HLA-DP).
