IEEE study describes breakthroughs in semiconductor nanolasers for ultra-efficient optical technologies
Researchers reveal that advanced nanolaser designs enable ultra-low power operation and compact integration for next-generation optical systems

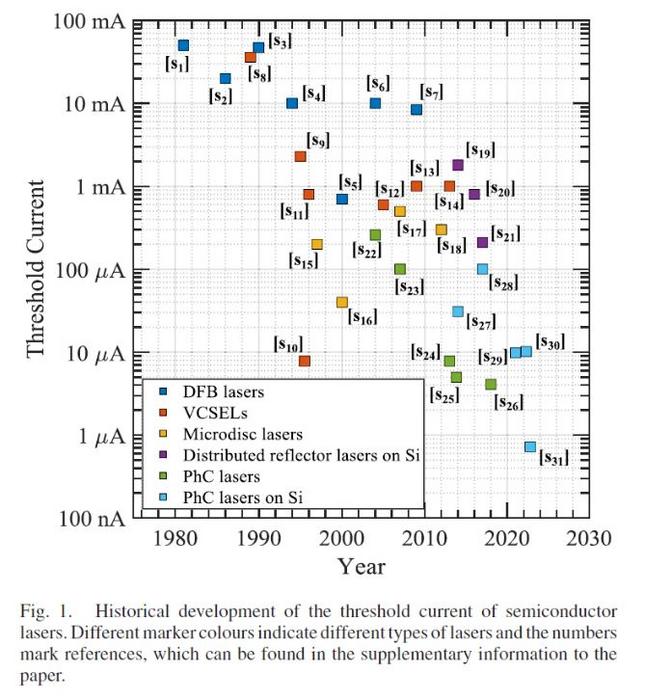

image: Historical development of the threshold current of semiconductor lasers. Different marker colors indicate different types of lasers and the numbers mark references, which can be found in the supplementary information to the paper.
Credit: Jesper Mørk from Technical University of Denmark
A new wave of innovation is transforming the future of optical technologies, driven by rapid advancements in semiconductor nanolasers. These advances are essential for future applications such as on-chip optical communication and neuromorphic computing, which require compact, energy-efficient light sources.
In a recently published paper, researchers detail the latest developments in this field, focusing on cutting-edge laser designs that enable ultra-low energy operation and deep subwavelength light confinement — crucial for future technologies like on-chip optical communication and neuromorphic computing. The study was led by Prof. Jesper Mørk from Technical University of Denmark and was published in IEEE Journal of Selected Topics in Quantum Electronics on 21 October, 2024. It highlights how miniaturizing laser cavities to the nanoscale not only improves energy efficiency but also challenges classical laser physics models.
Semiconductor lasers, first demonstrated in 1962, have long been fundamental to technologies ranging from telecommunications to imaging and sensing. However, as global demands shift toward more compact, faster, and energy-efficient systems, the traditional macroscopic design principles of lasers are being challenged at the nanoscale.
The paper spotlights three key innovations in nanolaser technology:
- Photonic crystal nanolasers – These use periodic structures to trap light in extremely small cavities, achieving room-temperature operation with record-low threshold currents as low as 730 nA.
- Deep subwavelength cavities – Recent designs have shattered traditional optical confinement limits, enabling laser cavities smaller than the diffraction limit — once thought impossible without high-loss metallic components.
- Semiconductor Fano lasers – Leveraging interference effects known as Fano resonances, these lasers can generate ultrashort optical pulses and exhibit improved spectral properties, offering new functionality for high-speed optical systems.
“Miniaturizing laser cavities to the nanoscale not only enables unprecedented energy efficiency but also challenges our understanding of fundamental laser physics,” state the paper’s authors. In nanoscale devices, classical models no longer apply — spontaneous emission plays a major role, phase transitions may not occur, and quantum noise behaviors shift dramatically.
This convergence of nanophotonics and quantum optics is opening a new chapter in laser science. The implications are vast: from enabling energy-efficient, light-based computer interconnects, to driving the development of hybrid optical computing systems that mimic the brain’s neural architecture.
With semiconductor nanolasers continuing to evolve, their role in powering the next generation of information technology is no longer a futuristic vision — it is becoming a present-day reality.
***
Reference
Authors: Jesper Mørk et al.
DOI: 10.1109/JSTQE.2024.3483900
Affiliations: Center for Nanophotonics, Technical University of Denmark, Lyngby, Denmark
