Morphology control breakthrough drives platinum catalyst efficiency for hydrogen fuel cells

Engineers have mapped a strategic pathway for revolutionizing platinum-based catalysts in hydrogen fuel cells, demonstrating that precise control over nanoscale morphology can enhance catalytic activity by up to nine times while significantly improving durability. The review, published in ENGINEERING Energy (formerly Frontiers in Energy), addresses the critical bottleneck limiting widespread adoption of proton exchange membrane fuel cells (PEMFCs)—the sluggish oxygen reduction reaction (ORR) at the cathode.

"Morphology control represents the most flexible and powerful strategy for optimizing platinum catalysts," said corresponding author Xiaogang Fu from Northwestern Polytechnical University's State Key Laboratory of Solidification Processing. "By engineering structures at the atomic level, we can expose more active sites, fine-tune electronic properties, and create catalysts that maintain performance far longer than conventional materials."

The research team from Northwestern Polytechnical University and the Fourth Military Medical University systematically analyzed cutting-edge strategies for designing Pt nanostructures, including one-dimensional nanowires, two-dimensional nanosheets, three-dimensional polyhedra, core-shell architectures, and hollow frameworks. Their findings provide a comprehensive framework for developing next-generation electrocatalysts essential for the hydrogen economy.

Overcoming the ORR Challenge

In PEMFCs, the ORR occurs at the cathode with a reaction rate five orders of magnitude slower than the hydrogen oxidation reaction at the anode. This inefficiency forces manufacturers to use excessive platinum, driving costs to prohibitive levels. Commercial Pt/C catalysts suffer from two major limitations: low specific activity and rapid degradation under operating conditions above 0.8V, where platinum atoms oxidize and dissolve.

The review demonstrates that morphology control directly addresses these issues by manipulating three fundamental parameters: increasing surface area to expose more active sites, generating optimal lattice strain to weaken oxygen binding strength, and engineering high-index crystalline facets that enhance intrinsic activity.

Key Morphological Strategies

Nanowires and Nanotubes: One-dimensional structures exhibit exceptional charge transport along their length while providing stable attachment to supports. Pt-Co nanowires achieved mass activities of 0.125 A/mgPt with only 14.7% surface area loss after durability testing. Ultra-thin PtGa nanowires demonstrated superior stability, retaining 84.2% of activity after 30,000 cycles due to strong p-d hybridization interactions.

Nanopolyhedra: Polyhedral structures selectively expose high-activity crystal faces. Octahedral PtNi nanoparticles dominated by (111) facets showed 10 times higher activity than Pt(111) surfaces, with mass activities reaching 2.82 A/mgPt. Icosahedral Pt3M alloys fully bound by (111) faces achieved 1.761 A/mgPt through compressive strain effects.

Core-Shell Architectures: Encapsulating non-noble metal cores with platinum shells optimizes electronic structure while protecting vulnerable inner layers. Co2P/Pt core-shell nanorods delivered 0.96 A/mgPt mass activity, with density functional theory revealing that interfacial strain and ligand effects at Co2P(001)/Pt(111) interfaces create the optimal configuration for oxygen binding.

Hollow Nanostructures: Nanocages and nanoframes maximize surface area and mass transfer. Pt-Ni beam nanocages exhibited extraordinary mass activity of 3.52 A/mgPt—nearly 30 times higher than commercial Pt/C—while maintaining structural integrity through 50,000 durability cycles. The open framework facilitates reactant access to interior active sites while preventing particle aggregation.

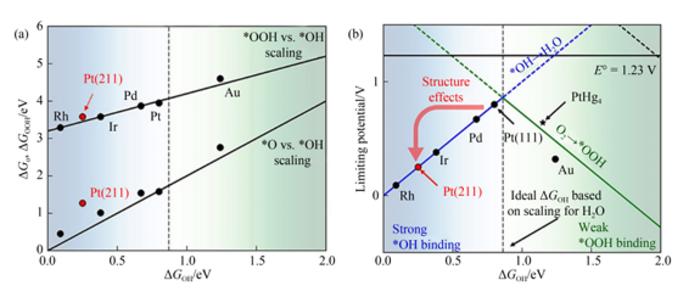

High-Index Facets: Surfaces like (211) and (311) demonstrate superior performance due to abundant low-coordination sites. Connected Pt-Fe networks with these facets showed specific activity nine times greater than commercial catalysts, though the high surface energy of these structures remains a synthesis challenge.

Future Directions: AI-Driven Design

The review outlines a transformative roadmap for catalyst development, emphasizing four critical areas:

1. Advanced Synthesis: Combining electrochemical deposition, template methods, and novel techniques like photovoltaic and biotechnology integration to create increasingly complex morphologies.
2. In-Situ Characterization: Real-time monitoring using in-situ X-ray diffraction, Raman spectroscopy, and atomic force microscopy to understand dynamic structural changes during operation.
3. Artificial Intelligence: Machine learning algorithms to predict optimal structures, identify active sites, and automate experimental design, dramatically reducing trial-and-error costs.
4. Industrial Scalability: Transitioning from lab-scale rotating disk electrode tests to practical fuel cell conditions and mass production processes.

"The future of catalyst design lies in human-computer collaboration," noted co-author Wanglei Wang. "Machine learning will not only accelerate discovery but may reveal entirely new catalyst classes invisible to traditional experimental approaches."

Significance for Clean Energy

With PEMFCs poised to power hydrogen vehicles and stationary power systems, reducing platinum loading while maintaining performance is critical for commercial viability. Strategically designed nanostructures can cut platinum requirements by 80-90%, directly addressing cost barriers that have limited fuel cell adoption.

The review provides manufacturers with evidence-based design principles for creating durable, high-performance catalysts capable of withstanding real-world operating conditions. As China and other nations accelerate hydrogen infrastructure development, these advances could enable fuel cells to achieve the efficiency and cost targets necessary for mainstream deployment.

"Beyond performance metrics, we must consider green chemistry and sustainable manufacturing," emphasized co-author Shun Chen. "Morphology control offers a pathway to create robust catalysts using minimal precious metals, supporting a truly sustainable hydrogen economy."

JOURNAL: ENGINEERING Energy (Formerly Frontiers in Energy)

DOI

https://doi.org/10.1007/s11708-024-0929-5

Article Link

https://link.springer.com/article/10.1007/s11708-024-0929-5
