Nanocluster catalyst breakthrough: Boosting methanol fuel cell efficiency and durability

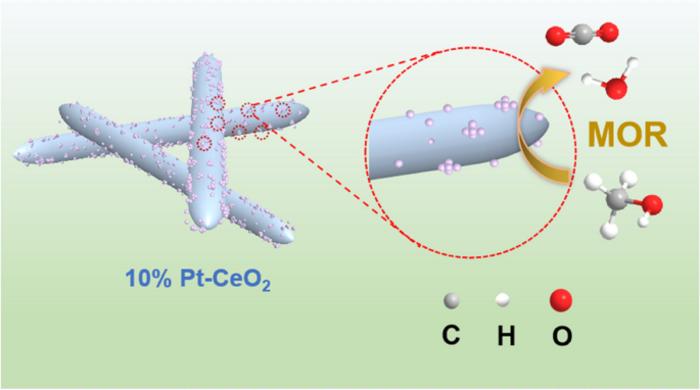

Direct methanol fuel cells (DMFCs) hold considerable promise as energy generation devices, valued for their high energy conversion efficiency, power density, and minimal environmental impact. Nevertheless, their widespread adoption hinges on developing exceptionally durable and active electrocatalysts capable of accelerating the sluggish methanol oxidation reaction (MOR). Platinum-based materials are favored for their effectiveness, yet their susceptibility to CO poisoning and high cost remain significant impediments. Researchers at Jieyang Branch of Chemistry and Chemical Engineering Guangdong Laboratory (Rongjiang Laboratory) and Guangdong University of Technology (GDUT) report a compelling advance: the fabrication of platinum nanoclusters supported on ceria (CeO₂) nanorods, forming a Pt-CeO₂ catalyst with superior electrocatalytic properties for MOR.

Engineering Enhanced Catalysis

The research team employed a multi-step synthesis process to craft the advanced catalyst. Initially, CeO₂ nanorods were prepared through a hydrothermal method, providing a unique high surface area morphology. Subsequently, tiny Pt nanoparticles were precisely embedded onto these nanorods using a facile chemical reduction technique. Extensive physical and electrochemical measurements characterized the resulting material. Techniques such as X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), field emission scanning electron microscopy (SEM), and high-resolution transmission electron microscopy (HRTEM) confirmed the crystalline structure, surface electron states, and morphology of the Pt-CeO₂ catalyst, revealing well-dispersed Pt nanoparticles (averaging 3.46 nm) and strong metallic interaction with the CeO₂ support.

Unveiling Superior Performance

Testing the new Pt-CeO₂ catalyst for the methanol oxidation reaction in an acidic electrolyte yielded remarkable results. The material exhibited a mass activity of 1414.0 mA mg-1 and an areal-specific activity of 1.615 mA cm-2, a performance approximately three times greater than that of the commercial 20% Pt/C catalyst. This enhanced activity is coupled with improved carbon monoxide (CO) anti-poisoning capabilities, a crucial factor given that CO intermediates frequently deactivate traditional platinum catalysts. The unique morphology and the synergistic interaction between Pt and CeO₂ contribute to better availability of active sites and efficient oxidation of carbonaceous species.

The Pt-CeO₂ catalyst demonstrated exceptional performance and durability within an alkaline electrolyte as well. After an accelerated durability test of 5000 cycles, the catalyst retained an impressive 90.44% of its initial mass activity, significantly outperforming the commercial benchmark. This robust stability is attributed to the distinctive electronic structure of platinum and the high surface area provided by the CeO₂ support. Further analysis pinpointed the presence of a Ce3+/Ce4+ redox pair and the formation of oxygen vacancies on the CeO₂ surface. These factors facilitate efficient oxygen storage and release, promoting swift electron transfer and the effective removal of poisoning intermediates, thereby sustaining the catalyst's activity over prolonged operation.

Towards Sustainable Energy Horizons

The underlying mechanism for the superior electrocatalytic performance of Pt-CeO₂ involves a sophisticated interplay between its components. The small size of the Pt nanoparticles (3.46 nm) combined with the inherent properties of the CeO₂ nanorods creates a potent functional interface. This interface fosters strong metal-support interaction, leading to the generation of Ce3+ species and oxygen vacancies. These vacancies act as active sites, enhancing the adsorption of crucial OH- and CO intermediates and accelerating their oxidation. This cooperative effect effectively mitigates CO poisoning, increasing the number of accessible platinum active sites for methanol oxidation and prolonging the catalyst's operational lifespan.

These findings signify a considerable advancement in the design of highly efficient and durable catalysts for direct methanol fuel cells. The developed Pt-CeO₂ catalyst offers a promising solution to current limitations facing DMFC technology, potentially accelerating its transition from research into practical applications for portable electronics and transportation. Future work will extend this exploration, investigating further optimizations in catalyst morphology and composition, to push the boundaries of energy conversion efficiency and operational longevity, ultimately contributing to a greener and more sustainable energy landscape.

"Our approach of integrating tiny platinum nanoclusters onto ceria nanorods has yielded a catalyst that not only dramatically boosts methanol oxidation but also maintains remarkable stability across various conditions," notes Wenli Zhang, a corresponding author on the study. "We believe this synergistic design, capitalizing on strong metal-support interactions and oxygen vacancy creation, charts a clear course toward more practical and sustainable direct methanol fuel cell technologies."

Corresponding Author: Wenli Zhang

Original Source: https://doi.org/10.1007/s44246-023-00091-z

Contributions: Sabarinathan Ravichandran was responsible for conceptualization, methodology, investigation, formal analysis, writing the original draft, reviewing, and editing. Shuhua Hao conducted investigation and formal analysis. Wenli Zhang acquired funding, supervised the study, and reviewed and edited the manuscript.
