Core-shell nanocatalysts: a sustainable advance for water and soil remediation

A collaborative team of scientists has developed a highly stable and cost-effective nanoparticle catalyst, derived from spent coffee grounds, that demonstrates exceptional efficacy in removing organic pollutants from both water and soil. The innovative material, named Co-CGBC-700, features core-shell cobalt nitride and cobalt nanoparticles uniformly dispersed on biochar, effectively addressing the long-standing challenge of catalyst stability and metal leaching in environmental remediation processes. This advancement presents a promising pathway for sustainable pollution control.

Crafting Resilient Catalysts from Repurposed Waste

The research commenced with the synthesis of the advanced catalyst by repurposing spent coffee grounds, a common domestic waste product. These coffee grounds were soaked in a cobalt ion solution and subsequently pyrolyzed at a controlled temperature of 700°C under a nitrogen atmosphere, yielding the Co-CGBC-700 catalyst. Rigorous characterization using techniques such as high-resolution transmission electron microscopy (HR-TEM), X-ray photoelectron spectroscopy (XPS), X-ray absorption fine structure spectroscopy (XAFS), and density functional theory (DFT) calculations confirmed the unique core-shell CoN@Co structure and its uniform dispersion on the biochar matrix. This detailed analysis revealed that nitrogen (N) and sulfur (S) atoms within the biochar play a pivotal role in strengthening the adhesion between the metal nanoparticles and the carbon support, preventing aggregation and improving the material's durability.

The catalytic performance of Co-CGBC-700 was assessed through advanced oxidation processes (AOPs), specifically activating peroxymonosulfate (PMS) to generate reactive radicals. The team tested the catalyst against model organic pollutants of significant environmental concern, including 2,4,4′-trichlorobiphenyl (PCB28), bisphenol A (BPA), and diethyl phthalate (DEP). The catalyst exhibited outstanding degradation efficiencies, achieving over 90% removal of pollutants within 60 minutes in various conditions, including natural water and soil samples. Crucially, the system maintained its high activity over multiple cycles, with minimal Co2+ leaching, staying well below regulatory limits. This impressive reusability and stability underscore its practical applicability for environmental clean-up.

Unpacking the Mechanism of Enhanced Degradation

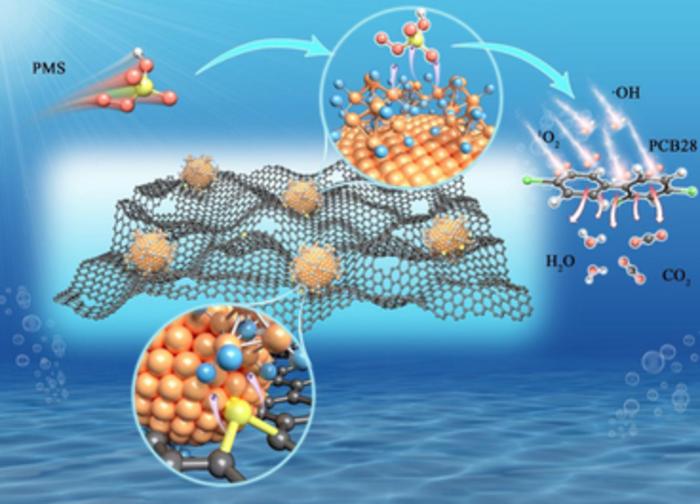

Mechanism investigations provided a thorough understanding of the catalyst's exceptional stability and activity. The outer CoN coating shields the metallic cobalt core, providing superior acid resistance and facilitating electron transfer, which is key for efficient PMS activation. Furthermore, the strong metal-support interaction, enhanced by the doped N and S atoms in the biochar, creates a robust anchoring effect that suppresses nanoparticle aggregation even under harsh conditions. DFT calculations elucidated that the Co–N bonds contribute to a significantly higher energy barrier for cobalt nanocluster desorption, effectively hindering particle migration and coalescence, thereby ensuring the homogeneous distribution and longevity of the active sites.

The study further explored the specific pathways through which the pollutants are degraded. Electron paramagnetic resonance (EPR) and radical quenching experiments confirmed that both radical and non-radical oxidation pathways contribute to contaminant breakdown. The primary active species identified were sulfate radicals (SO4•−), hydroxyl radicals (•OH), and singlet oxygen (1O₂). The exposed CoN(111)-Co facet on the nanoparticle surface was found to be particularly effective in activating HSO5− molecules, leading to their decomposition and the generation of these highly reactive oxygen species. This intricate interplay of structural features and electronic properties enables the catalyst to effectively degrade a diverse range of organic compounds.

Looking Ahead: A Sustainable Horizon for Environmental Remediation

While the current research establishes a robust foundation, continued investigation will further broaden the scope of this technology. Future directions include exploring the scalability of the synthesis process for large-scale industrial deployment, assessing the long-term ecological impact of the treated water and soil systems, and evaluating the catalyst's performance against an even wider array of persistent organic pollutants. The methodology for preparing these cost-effective 3D transition metal nanoparticles, particularly from ubiquitous waste materials like coffee grounds, promises widespread applicability. The team aims to extend this strategy to develop other mono-metal and bimetal nanoparticle catalysts with similar properties, further advancing the toolkit for global environmental remediation efforts.

Dr. Peixin Cui, a corresponding author from State Key Laboratory of Soil and Sustainable Agriculture, Institute of Soil Science, Chinese Academy of Sciences, articulated the importance of these findings: "Our work introduces a highly innovative and sustainable approach to tackle pervasive organic pollution. By transforming spent coffee grounds into an ultra-stable catalyst, we not only offer a powerful solution for water and soil remediation but also champion the principles of circular economy. The exceptional stability and catalytic efficiency of these core-shell nanoparticles mark a significant step towards developing environmentally conscious and economically viable technologies for a cleaner future."

Corresponding Author: Peixin Cui

Original Source: https://doi.org/10.1007/s44246-024-00113-4

Contributions: All authors contributed to the study conception and design. Material preparation, data collection and analysis were performed by Y. Wang, P. Cui and Q. Yang. The first draft of the manuscript was written by Q. Yang, P. Cui and Y. Wang and all authors commented on previous versions of the manuscript. Q. Yang performed experiments helped with G. Fang and F. Dang. P. Cui, C. Liu and G. Fang performed XAFS measurements, date analysis, HAADF-STEM observation and DFT calculations. All the authors participated in analysis of the experimental data and discussions of the results. All authors read and approved the final manuscript.
