Crafting superior battery anodes from lignin: A sustainable leap for lithium-ion storage

Researchers from Guangdong University of Technology and associated institutions have unveiled a promising advancement in lithium-ion battery (LIB) technology, leveraging sustainable resources. Current commercial graphite anodes often face limitations in capacity due to their inherent stoichiometric constraints. This new investigation addresses these challenges by developing advanced anode materials that enhance both energy density and cycle stability, paving the way for more efficient and enduring portable electronic devices and electric vehicles. The scientists focused on graphitized carbon nitride (g-C3N4), a material with structural similarities to graphite, recognizing its potential for superior lithium storage capabilities.

Harnessing g-C3N4's Potential with Sustainable Lignin

While g-C3N4 holds significant promise for high lithium storage capacity, its semiconductor nature presents hurdles, including low electron transfer rates and substantial lithium-ion diffusion resistance. Overcoming these limitations is paramount for its practical application. The research team innovated a method to integrate g-C3N4 with conductive amorphous carbon, aiming to mitigate these issues effectively. A key element of their approach involved utilizing lignin, an abundant and often underutilized industrial biomass, as a sustainable precursor for the amorphous carbon component. This not only offers an eco-friendly source material but also allows for precise microstructural regulation.

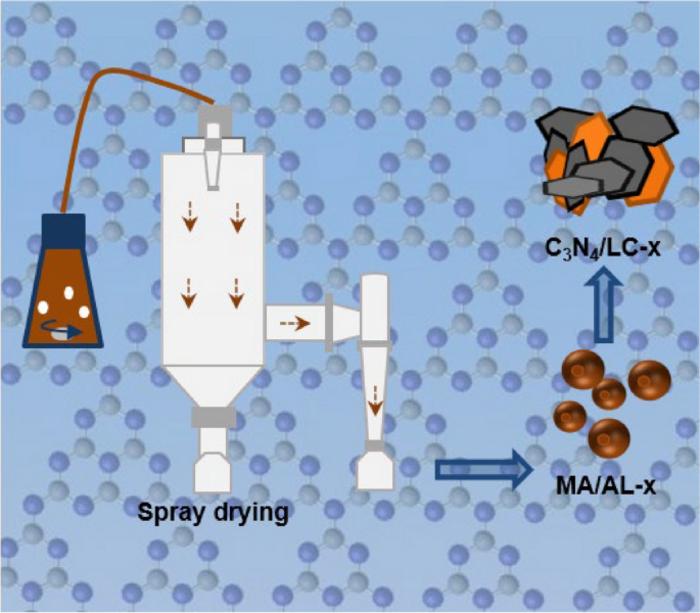

The fabrication process involved homogeneously mixing lignin and melamine using a spray drying technique. This was followed by a one-step carbonization procedure, yielding covalently bonded C3N4/LC materials. The resulting C3N4/LC-2 composite, specifically optimized for its lignin-to-melamine ratio, demonstrated exceptional uniformity. Microscopic and spectroscopic analyses, including Scanning Electron Microscopy (SEM), Transmission Electron Microscopy (TEM), X-ray Diffraction (XRD), Raman spectroscopy, Fourier-Transform Infrared (FT-IR) spectroscopy, and X-ray Photoelectron Spectroscopy (XPS), confirmed the successful formation of these unique heterostructures. These characterizations revealed that the uniform dispersion of g-C3N4 within the amorphous carbon matrix significantly enhanced electrical conductivity and lowered the diffusion energy barrier for lithium ions.

Unlocking Enhanced Electrochemical Performance

The electrochemical performance of the C3N4/LC-2 anode was rigorously evaluated. Cyclic voltammetry (CV) curves indicated a reduced degree of irreversible reactions, suggesting an electrochemical process closer to an ideal capacitive reaction. Galvanostatic Charge/Discharge (GCD) tests showcased a remarkable initial capacity of 749.2 mAh g−1 and an initial coulombic efficiency of 59.9%. Crucially, the C3N4/LC-2 material exhibited superior rate performance and cycling stability compared to its g-C3N4 and lignin-carbon counterparts. Electrochemical Impedance Spectroscopy (EIS) further substantiated these findings, revealing the lowest solution resistance (Rs) and Warburg lithium diffusion (Wdiff), alongside a higher lithium-ion diffusion coefficient, confirming significantly enhanced ion diffusion kinetics.

The researchers attribute the improved performance to the meticulously engineered structure, where the uniform dispersion of g-C3N4 creates numerous nitrogen active sites. This unique configuration facilitates efficient electron transfer and concurrently reduces the energy barrier for lithium-ion adsorption, ensuring greater stability and longevity for the battery. While the initial coulombic efficiency of C3N4/LC-2 was influenced by the presence of irreversible defects from C3N4, the overall electrochemical behavior represented a substantial improvement.

A Vision for Sustainable Energy Storage

Professor Xueqing Qiu from Guangdong University of Technology, a corresponding author on the study, commented on the significance of these findings: "Our work introduces an innovative and sustainable pathway to design high-performance anode materials for lithium-ion batteries. By integrating lignin-derived carbon with graphitic carbon nitride through a simple yet effective method, we have created a composite that not only surpasses the electrochemical limitations of existing materials but also champions the high-value utilization of biomass. This represents a substantial step towards more efficient, sustainable, and reliable energy storage solutions for the future."

This research provides a novel blueprint for the structural design of modified carbon-based anodes, offering substantial implications for the broader field of energy storage. Future efforts will likely focus on further optimizing the material's synthesis parameters to overcome initial efficiency challenges and exploring scale-up methods for industrial application. The principles established here could also be extended to other battery chemistries, such as sodium-ion or potassium-ion batteries, where similar challenges in electrode material performance exist. The study's success highlights the potential of sustainable resources in advancing critical energy technologies.

Corresponding Author: Zejie Zhang, Wenli Zhang, Xueqing Qiu

Original Source: https://doi.org/10.1007/s44246-024-00128-x

Contributions: All authors contributed to the study conception and design. Xueqing Qiu, and Wenli Zhang performed the supervision, conceptualization, and funding acquisition. Data collections were performed by Shunsheng Yang, Lei Zhong, and Zehua Lin. Material preparation, and analysis were performed by Lei Zhong, and Shunsheng Yang. The first draft of the manuscript was written by Shunsheng Yang. Lei Zhong, Zejie Zhang, Wenli Zhang, and Qiyu Liu commented on previous versions of the manuscript. The submitted version of the manuscript was finalized by Lei Zhong and Wenli Zhang. All authors read and approved the final manuscript.
