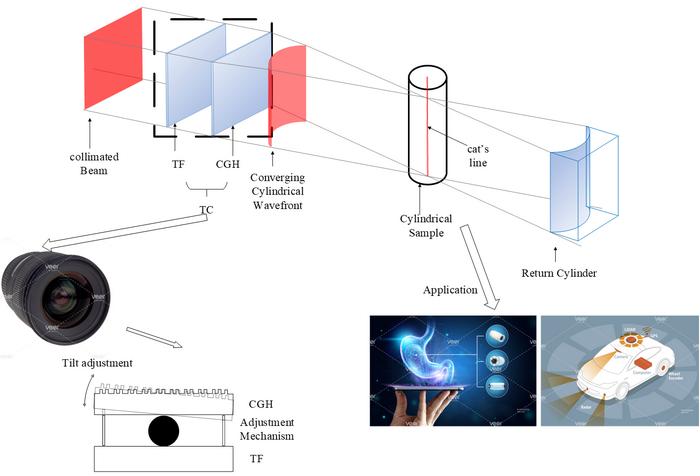

image: Figure 1 illustrates the test optical path for cylindrical homogeneity interferometry. The integrated TC enables rapid optical alignment via its adjustment mechanism. This lens offers advantages such as low cost, stable structure, and high flexibility. The figure also shows that cylindrical materials are mainly used in fields such as medical endoscopy and LiDAR.
Credit: Zechuan Wei et al.
Optical homogeneity is generally defined as the ratio of the maximum refractive index variation inside a component to its average refractive index. It directly determines imaging quality, beam stability, and measurement accuracy, making it a core quality indicator for high‑end optical components. With the rapid development of LiDAR, medical imaging, semiconductor manufacturing, and other industries, the demand for accurate homogeneity of cylindrical transparent materials is increasing. Currently, the market has long relied on the traditional “slice‑then‑measure” scheme: cutting a cylindrical ingot into a thin optical flat, measuring the optical flat with planar homogeneity testing methods, and then processing only the qualified optical flat. This approach has an inherent flaw: if the entire cylindrical ingot fails the homogeneity specification, all optical flats are scrapped, resulting in huge material waste and cost loss.
Recently, a research team led by Professor Sen Han from the University of Shanghai for Science and Technology, with Zechuan Wei as the first author, published a paper titled “Simulation and experimental investigation of homogeneity measurement in side‑polished transparent cylindrical materials” in Light: Advanced Manufacturing. The study proposes a radial absolute measurement method for refractive index homogeneity of transparent cylindrical materials based on a Fizeau interferometer, successfully achieving non‑destructive, high‑precision inspection of the internal refractive index distribution of cylindrical ingots at the ingot stage. This method eliminates the “slice‑then‑measure” workflow. It can be widely applied to quality control of key products such as semiconductor silicon ingots, medical endoscope cylindrical windows, and LiDAR optical components.
The transmission cylinder (TC) used by the research team is essentially a combination of a high‑precision transmission flat (TF) and a computer‑generated hologram (CGH). The TF provides a stable reference optical path, while the CGH acts like a custom‑made “stamp” that “stamps” the standard plane wave from the interferometer into the required cylindrical wave. More cleverly, this integrated design permanently locks the TC's optical axis to the interferometer's optical axis. Once aligned, it can be used for a long time without re‑alignment, making it easy to obtain cylindrical surface interferograms.
The interferogram contains systematic errors and errors from various surfaces. The team adopted an absolute measurement method: measure four sets of interference data: empty cavity, transmission through the sample, front‑surface reflection, and back‑surface reflection. Through mathematical combination, even with the coordinate‑mirror‑reversal characteristic of cylindrical geometry, the figure error of the reference mirror, the surface error of the sample, and the alignment error of the return mirror cancel each other out, leaving only the internal refractive‑index distribution of the sample. This is like taking a photo of the background first, then a photo with a person. Subtract the two, and the person is “cut out” – the messy background no longer matters.
This study proposes a radial absolute measurement method for homogeneity of transparent cylindrical materials, providing a “no‑slice, non‑destructive” raw material pre‑screening tool for products such as semiconductor ingots, LiDAR optics, and medical endoscope windows. It significantly reduces costs and fills the technical gap in absolute homogeneity measurement for cylindrical components. In the future, this method is expected to be combined with stitching measurement techniques to achieve full‑volume homogeneity imaging of entire cylinders, and even to enter production lines as a routine means of online non‑destructive inspection.
Journal
Light: Advanced Manufacturing
Article Title
Simulation and experimental investigation of homogeneity measurement in side-polished transparent cylindrical materials
