Unlocking the mysteries of interfacial processes in zinc-ion batteries through multiscale advanced characterization techniques

Aqueous zinc-ion batteries (ZIBs) are emerging as promising candidates for sustainable energy storage due to their low cost, intrinsic safety, environmental friendliness, and abundant zinc resources. However, their large-scale application is hindered by complex interfacial phenomena at the zinc anode/electrolyte boundary, including dendrite growth, parasitic hydrogen evolution, corrosion, and the unstable formation of the solid electrolyte interphase (SEI). These processes are highly dynamic, interdependent, and sensitive to local microenvironments, making them difficult to capture with conventional ex situ methods and severely limiting electrochemical stability and cycle life.

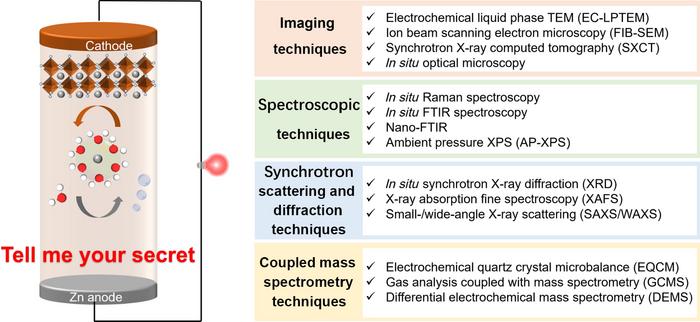

To address these challenges, advanced in situ and operando characterization techniques have been developed, enabling real-time monitoring of interfacial dynamics under realistic operating conditions. Imaging approaches, from liquid-phase TEM to FIB-SEM, synchrotron tomography, and optical microscopy, directly visualize dendrite initiation, growth pathways, and structural failure. Spectroscopic methods, such as Raman, FTIR, nano-FTIR, and ambient pressure XPS, reveal the chemical composition, solvation structures, and SEI evolution at buried interfaces. Synchrotron-based scattering and diffraction, including XRD, SAXS/WAXS, and XAFS, provide atomic-to-mesoscale insights into crystallographic transitions, local coordination, and additive-induced effects. Complementary mass spectrometry techniques, such as EQCM, GC-MS, and DEMS, track interfacial mass variations, gas evolution, and parasitic reaction kinetics with high sensitivity and temporal resolution.

Together, these multi-modal tools establish direct correlations between structural, chemical, and electrochemical processes across different spatial and temporal scales. They not only clarify the mechanisms governing zinc nucleation, dendrite suppression, and interphase formation but also provide actionable insights for electrolyte engineering, additive design, and protective interface construction. Looking ahead, integrating these advanced techniques with machine learning, theoretical modeling, and multimodal data fusion will be crucial for overcoming current resolution limits and translating interfacial understanding into practical strategies. Such progress will accelerate the development of durable, dendrite-free, and high-performance aqueous zinc-ion batteries for large-scale and safe energy storage applications.
