Seeing activities in 3D neural structures at 100 Hz

The mechanics of how neurons receive, integrate, and transmit information are fundamental to computational neuroscience. Dendrites perform complex nonlinear computations within intricate 3D geometries, yielding signals that mutate on millisecond timescales and sub-micrometer spatial dimensions. Capturing these dynamics demands an imaging modality that simultaneously delivers sub-micron resolution, high volumetric frame rates, and extended 3D coverage. Conventional two-photon microscopes rely on sequential point-and-plane scanning; their low volume refresh rates fail to capture fast dendritic events distributed across neural architectures.



Writing in Light: Science & Applications, a collaborative team led by Professor Leilei Peng (University of Arizona) and Professor Jun B. Ding (Stanford University) introduced dual-view Bessel two-photon projection microscopy (dv-B2PM). This technique reconciles the trade-off between high-speed volumetric imaging and synaptic-level spatial resolution, tracking rapid calcium dynamics across extended neuronal structures.

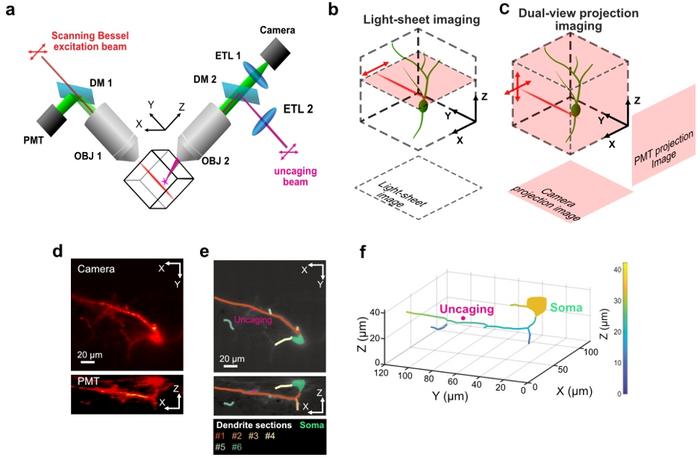

The architecture of dv-B2PM utilizes two orthogonal objectives positioned at 90 degrees above the specimen to record two perpendicular projections of the imaging volume simultaneously. A Bessel two-photon beam scans the volume while a camera and a photomultiplier tube concurrently collect fluorescence projection pairs. Structural overlaps in one projection perspective are resolved by the complementary orthogonal view. This dual-view projection framework compresses the volume to preserve spatial context along 3D dendritic pathways while eliminating the sensor readout overhead associated with multi-layer stack acquisition.



The system achieves a volumetric imaging rate of 100 Hz over a field of view measuring approximately 120 × 80 × 42 µm³. It features an optical voxel resolution of 0.5 × 0.5 × 0.75 µm³ and digital sampling at 0.3 µm across all axes. Replicating this throughput via conventional sequential scanning would require a hypothetical system operating at 14,000 frames per second with a 1.7 GHz pixel rate. dv-B2PM bypasses this data transfer bottleneck and circumvents the detector readout noise associated with ultra-high-speed sensors.



The researchers validated the platform using live brain slices containing motor cortex neurons labeled with GCaMP8m. A secondary 720 nm laser beam enabled two-photon glutamate uncaging at designated dendritic spines to simulate localized excitatory inputs, while dv-B2PM recorded the evoked calcium dynamics at 100 Hz.



The experiments demonstrated that, depending on the stimulation intensity, localized glutamate uncaging adjacent to a single dendrite can elicit distinct sub-threshold or suprathreshold spatiotemporal modes within the same neuron. Lower-intensity stimuli produced sub-threshold calcium transients restricted to the dendritic segments near the uncaging site, which decayed before reaching the soma. Higher-intensity stimuli triggered suprathreshold calcium propagation that successfully invaded the soma and adjacent dendritic ramifications.

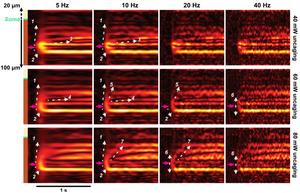

Spatiotemporal analysis across distinct timescales revealed that long-term calcium variations were mediated by dendrite-to-soma propagation and back-propagating action potentials (bAPs) originating from the cell body. Conversely, short-timescale two-dimensional wavelet analysis mapped along the continuous dendritic length uncovered spatially heterogeneous calcium transients operating at nominal frequencies of 5 to 40 Hz. Certain high-frequency transients propagated along the dendritic pathways at velocities exceeding one millimeter per second.



The authors concluded that these rapid, localized events—previously unresolvable via conventional microscopy—likely underlie the mechanisms behind dendritic plateau potentials and signal summation. Beyond single-cell physiology, the researchers anticipate that dv-B2PM will serve as an all-optical framework for dissecting circuit-level neuronal integration.

---

---
