UAV-based canopy mapping reveals hidden nitrogen layers in apple orchards

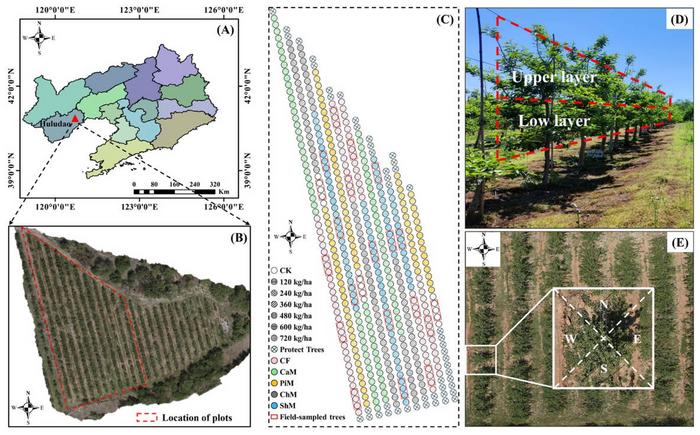

image: Location of the study areas and experimental design, and schematic diagrams of apple tree canopy sampling.
Credit: Plant Phenomics
Precision nutrient management in high-density orchards is critical for yield and fruit quality, yet accurately gauging the nitrogen status of individual trees remains a challenge. A new study introduces a sophisticated framework that merges drone-based hyperspectral imaging with three-dimensional (3D) point cloud data to estimate canopy nitrogen concentration at the single-tree scale. By accounting for the vertical stratification of nitrogen within the tree and employing advanced spectral analysis, this approach offers a more reliable, non-destructive path toward optimizing fertilization and boosting orchard productivity.
Nitrogen is a cornerstone of plant health, directly influencing photosynthesis, growth, and fruit development. However, managing nitrogen in intensive apple orchards is complicated by significant tree-to-tree variability. Traditional laboratory analysis of leaf samples is destructive and time-consuming, offering only a snapshot in time. While hyperspectral remote sensing holds promise for rapid, non-destructive monitoring, its application in orchards has been hindered by the coarse resolution of sensors, which struggles to isolate individual overlapping tree canopies, and the complex three-dimensional (3D) architecture of the trees themselves, which creates spectral mixing from leaves, branches, and shadows. Due to these issues, there is a need to develop more integrated methods that can accurately extract tree-level information from complex, dense canopies.
A team of researchers from the Agricultural Information Institute and the Institute of Fruit Tree Research, both part of the Chinese Academy of Agricultural Sciences, has developed a novel cross-modal framework to tackle these challenges. Their findings, published (DOI 10.1016/j.plaph.2026.100172) in the journal Plant Phenomics on September 7, 2026, detail a method that aligns high-resolution RGB point clouds with hyperspectral orthomosaics. This co-registration allows for precise delineation of individual tree canopies, enabling a stratified analysis of nitrogen distribution and significantly improving estimation accuracy.
The study's innovative workflow is built on several key technical advances. First, it uses RGB-derived 3D point clouds to accurately locate individual tree canopies in dense plantings, overcoming the limitations of low-resolution hyperspectral data. This enabled researchers to quantify a consistent vertical nitrogen gradient, where the lower canopy had a 0.5-9.5% higher nitrogen concentration than the upper layer across different fertilization treatments. To extract the most relevant information from the noisy spectral data, the team applied Continuous Wavelet Transform (CWT) to the canopy reflectance. The CWT-2 scale proved most effective at enhancing subtle, nitrogen-specific spectral features, outperforming traditional original reflectance models. Crucially, K-means clustering was used to partition canopy pixels into two distinct categories: "Cluster-A," representing dense, vegetation-dominated interior pixels, and "Cluster-B," which captured mixed pixels from the canopy's edge and gaps. Models based solely on Cluster-A pixels achieved a significantly higher validation R² of 0.69-0.76, compared to the less reliable 0.48-0.57 from the boundary-affected pixels. This clustering step effectively filters out spectral interference from background elements like soil and shadowing.
"The core of our approach is about looking beyond the superficial signal," said the author. "For years, we've treated the tree canopy as a uniform entity, but it's not. By separating the canopy into layers and, more importantly, purifying the pixels we analyze, we're effectively cutting through the noise created by shadows and structural complexity. The K-means clustering is a game-changer; it allows us to focus on the most reliable, foliage-dominated spectral data, which is where the true nitrogen signal lies. This moves us away from a 'one-size-fits-all' model to a more nuanced, accurate assessment for individual trees."
This research provides a powerful, operational blueprint for precision agriculture. The framework enables orchard managers to create detailed, tree-level nitrogen maps, facilitating variable-rate fertilization that applies nutrients only where they are needed. This not only optimizes fruit yield and quality but also minimizes environmental waste. The study highlights how integrating spatial and spectral data can overcome the inherent complexities of orchard systems, paving the way for more robust biochemical retrieval. This technology can be extended to other high-value tree crops like citrus and olives, offering a scalable solution for sustainable and efficient nutrient management in the future.
###
References
DOI
Original Source URL
https://doi.org/10.1016/j.plaphe.2026.100172
Funding information
This work was supported by the Basic Research Center, Innovation Program of Chinese Academy of Agricultural Sciences (CAAS-BRC-SAE-2025-01 and CAAS-ASTIP-2026-AII).
